DataTable

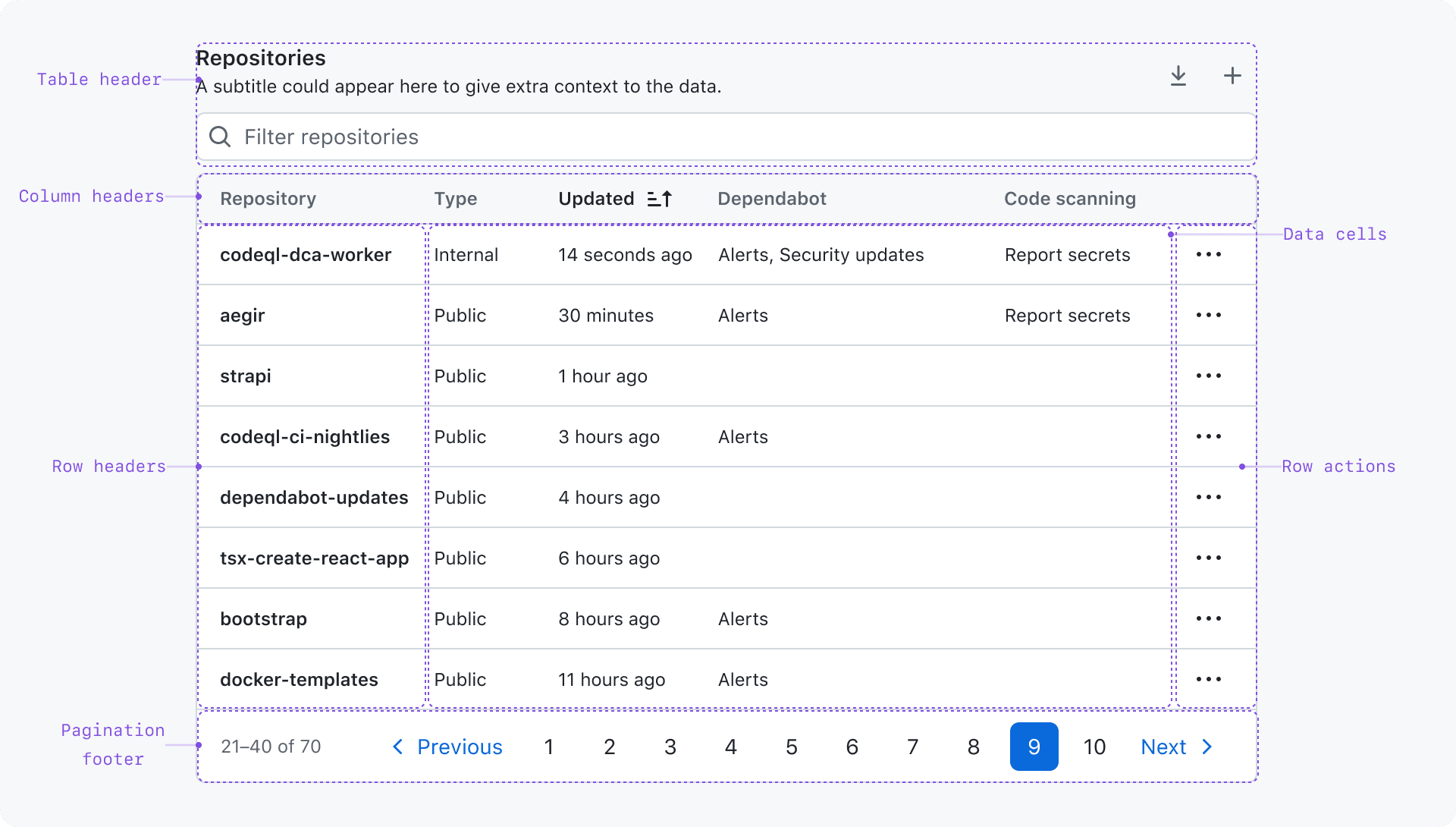

Anatomy

Edit in Figma

Table header

The table header shows contextual information about the table and render controls that affect the table.

• Title: A concise label that describes the table and its contents
• Subtitle: A brief description to adds more context for the table when the title alone is not enough
• Actions: Controls that affect the entire table

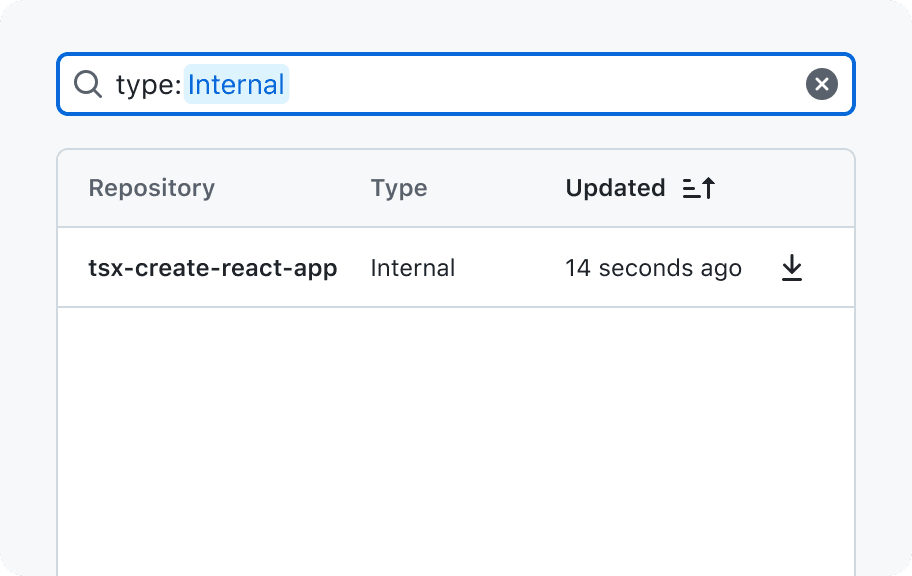

• Filter: An input used to filter table data to make it easier for the user to focus only on the rows relevant to their task. Even though the filter affects the entire table, it's not considered an "action".

Column headers

A very short label that describes the data in the column.

Column headers are buttons that sort rows by the column data in ascending or descending order. Sort functionality may be disabled on a column-by-column basis.

The column that contains row actions does not have a visible column header.

Row headers

A row header identifies the item being represented in the row. They are typically the first cell in the row, and are visually distinct from the other cells in the row.

Row actions

Actions that affect the item represented in the row.

Data cells

The data for each row that is described by its corresponding column header and optional row header.

Pagination footer

The pagination footer shows the user where they are in relation to the total number of rows and provides controls for navigating all rows.

Usage

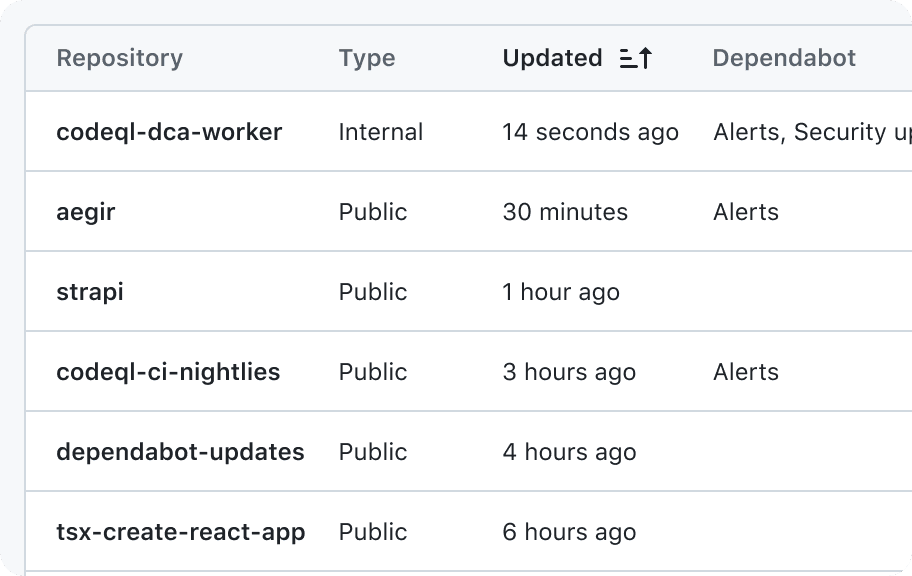

When to use a DataTable

• To navigate a lot of information at once and to make it easy to compare data points between rows or columns
• If the data is easy to understand when all data points are displayed in a flat hierarchy

When to use something else

Use a list or something else

• When there are columns where the cells will usually be empty

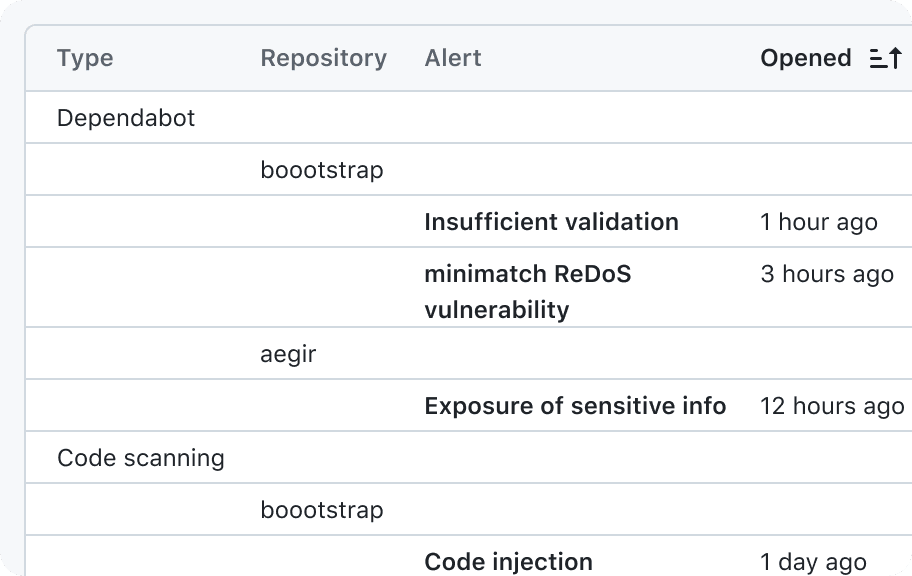

• If the data is easier to understand with grouping and hierarchy (sections, headings, subheadings, etc.)
• When rows and columns are only a means of layout
• For data with longform content such as paragraphs or long lists

Use a data grid

• If the primary purpose is to edit or otherwise interact with the cells (like a spreadsheet)
• If rows or columns support some kind of user interaction

Best practices

Order rows intuitively

Data should be initially rendered in an intuitive order. For example, starting with the most recently created items.

By default, sort alphabetically by the first column's content. Rows will be re-ordered as the user updates the sort parameters

Minimize the number of columns

It's easier to scan many rows than it is to scan many columns. Consider swapping columns and rows when it's unlikely that there will ever be more rows than columns.

Adapt column widths when necessary

Use the column width options to appropriately size the columns depending on the content and the available horizontal space.

Keep column headers short

Column headers are short labels used to define the kind of data that is shown in that column.

Keep cell content concise

Cells should represent data in the shortest possible format. This makes the table easier to scan, and preserves horizontal space.

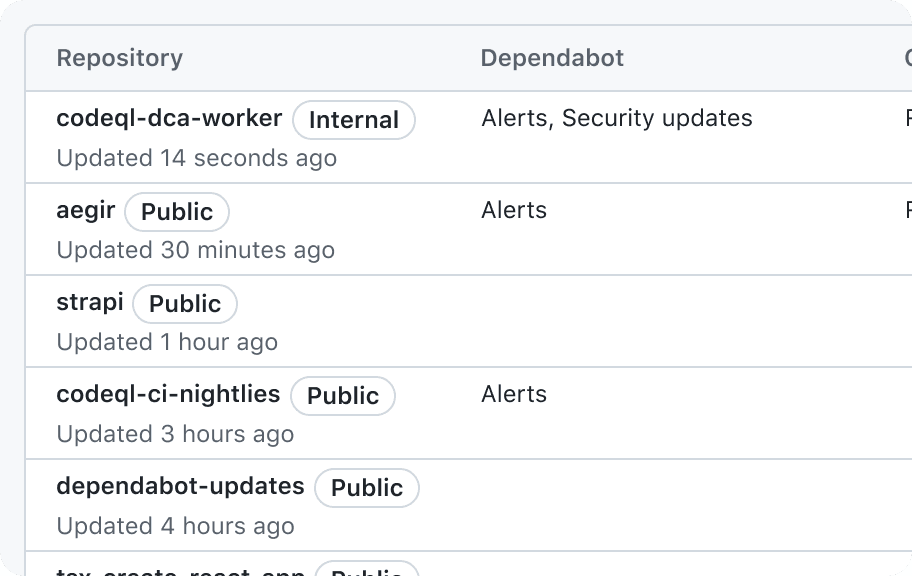

Don't use a single column to show multiple pieces of data

The column header should accurately represent the data point rendered in the column's cells. It would also be unclear which data point is being used when sorting.

Make numbers easier to compare

Right-align numeric values and use the tabular-num font variant when possible.

Avoid wrapping or truncation of cell content as much as possible

Ideally, the cell content is very short and the column will be wide enough to accommodate its content. In cases where it's not possible to fit the content, you may wrap or truncate the content.

Cells that are likely to contain long strings may choose to wrap the content. This is the preferred way to accommodate long content because it doesn't hide the content.

Content truncation is available as a last resort when column widths are set. The full content may be exposed in a tooltip.

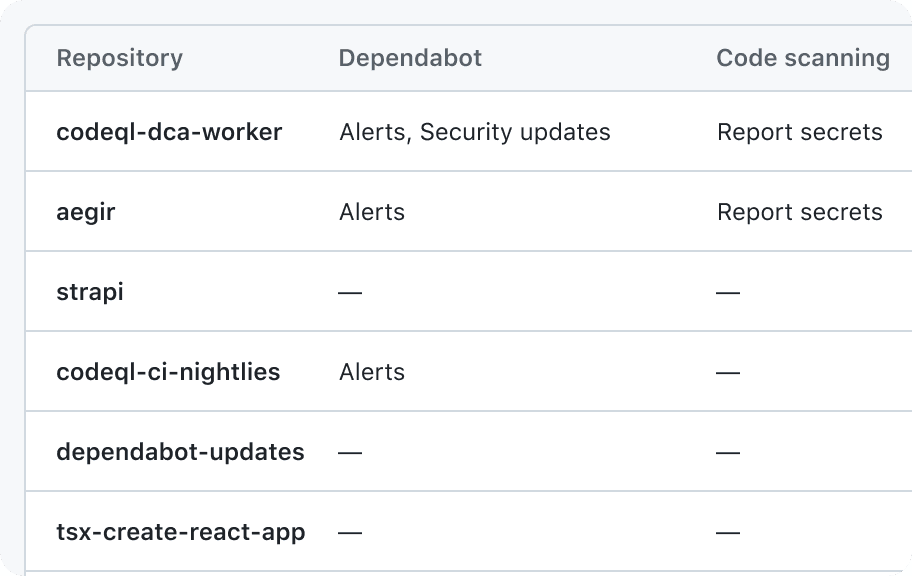

By default, leave empty cells blank

You may show a message to explain an absence of data. Just don't use a character like “x” or “-”. It creates a weird experience for assistive technologies like screen readers.

Use “skeleton” placeholders to indicate loading content

The placeholder should match the real content as closely as possible.Use the following properties to adjust the size and alignment of the placeholder:

• column width
• alignment
• whether or not there is a leading visual

Don't worry about whether the text wraps. Ideally, the height of the cell will not change once the data is loaded. However, it wouldn't be possible to know how many lines of text the content wraps to.

Use pagination to accommodate tables with a large dataset

By paginating, the user can focus on segments of a large dataset without being overwhelmed. Pagination also helps with performance by reducing the amount of data to be downloaded and the amount of content that needs to be rendered.

Don't put too many or too few rows per page

If page length is too short, it would be annoying to browse the data in small segments. If page length is too long, users could get lost or overwhelmed.

The following factors influence what the ideal page length would be for your use-case:

• Whether rows can be filtered
• Number of columns
• Visual complexity of the rendered cells
• Amount of context needed when reviewing the data

These factors make it difficult to recommend an “ideal” page size for all use cases, but 20 rows is a good place to start.

Communicate when the table has no data to show

Show a Blankslate component in place of the table

Consider small screens

Some strategies for adapting the table for narrow viewports include:

• Use the column width options
• Remove less important columns
• Scroll horizontally

Do's and Don'ts

Column widths

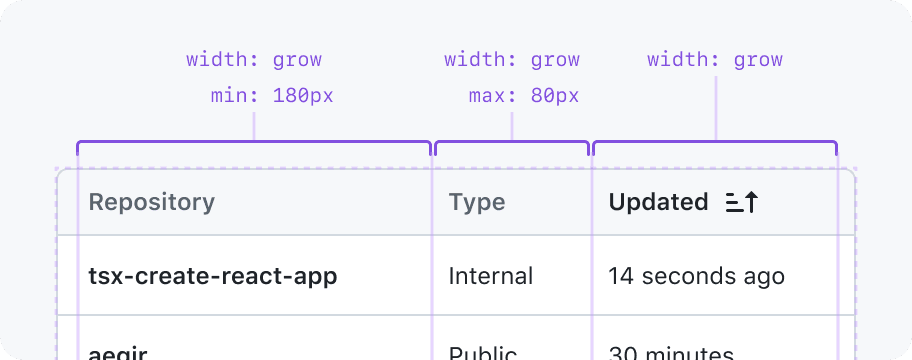

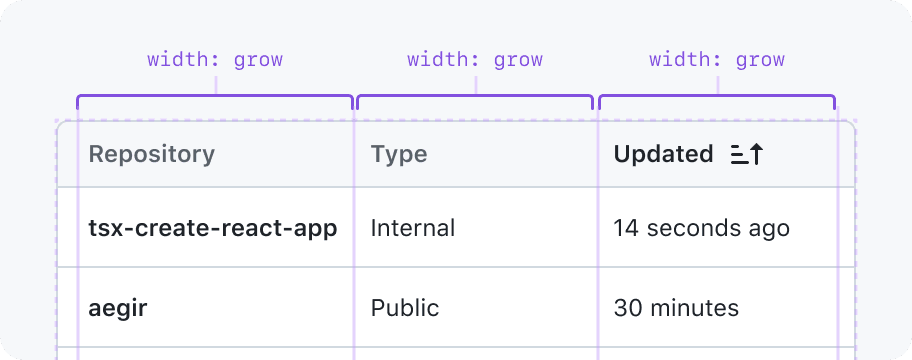

Grow (default)

Stretch to fill available space, and min width is the width of the widest cell in the column. This is the same behavior as a CSS grid column with the value minmax(auto, 1fr).

May have a min and max width constraint.

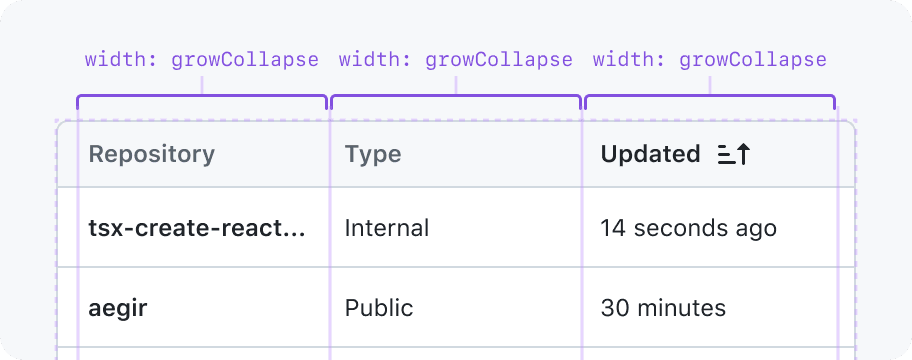

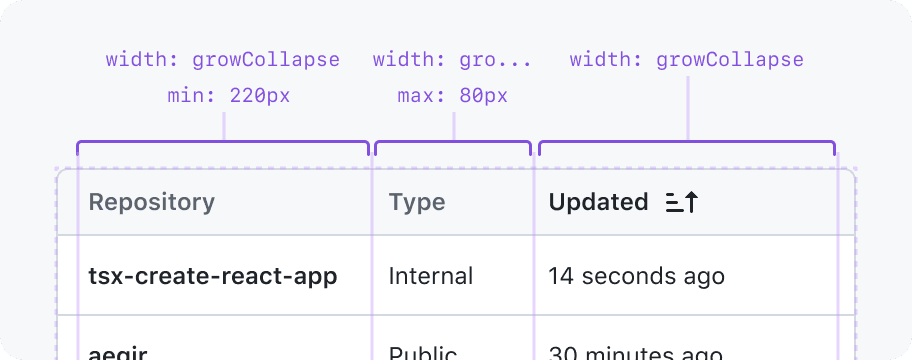

Grow or collapse

Stretch to fill available space in the parent or shrink to fit in the available space in the parent.

May have a min and max width constraint. Without a min width constraint, the column could collapse to a width of 0px.

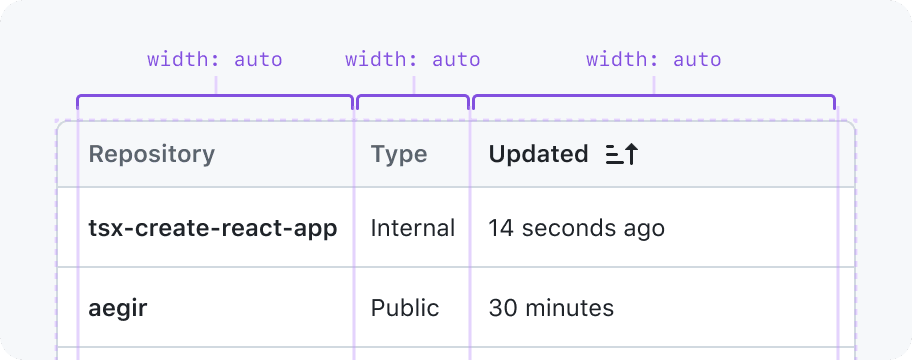

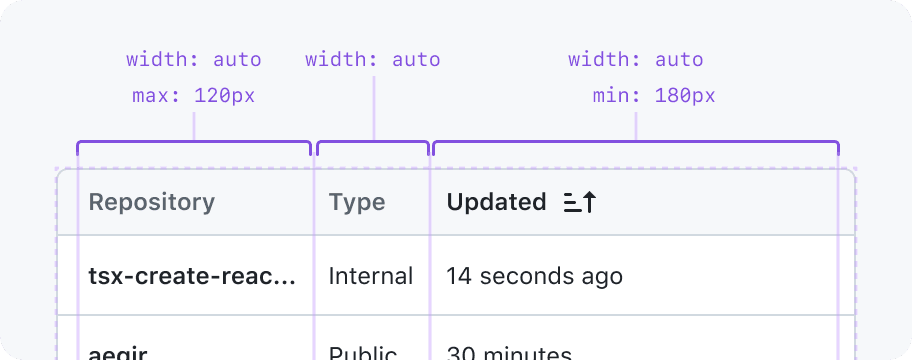

Auto

The column is the width of its widest cell. Not intended for use with columns whose content length varies a lot because a layout shift will occur when the content changes.

May have a min and max width constraint.

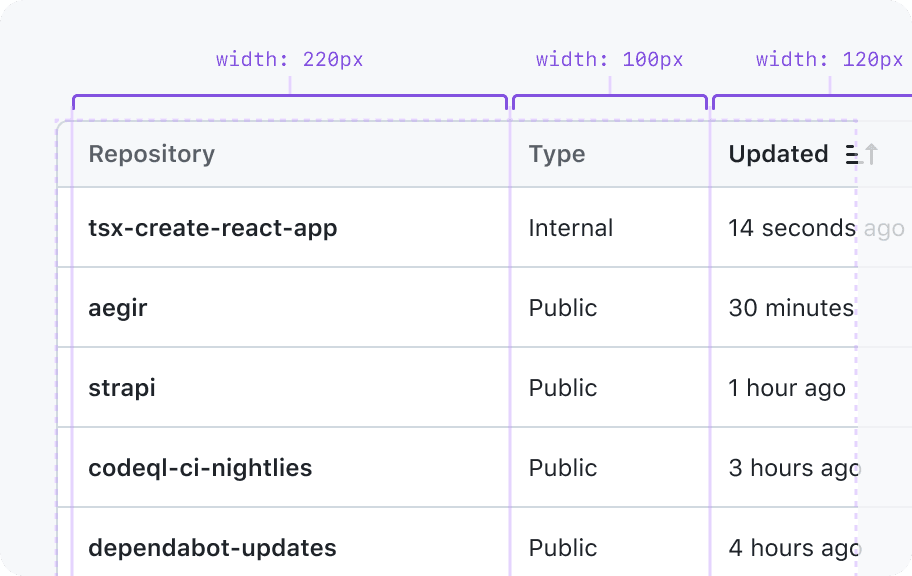

Explicit width

Will be exactly that width and will not grow or shrink to fill the parent.

Edit in Figma

Action column

The action column would not accept a width. Its min-width would be the width of the actions.

Filling available space

If all columns have width constraints set and the row doesn't fill the table container, the difference is added to the width of the last column.

Filtering
