TreeView

TreeView is a hierarchical list of items that may have a parent-child relationship where children can be toggled into view by expanding or collapsing their parent item.

Page navigation navigation

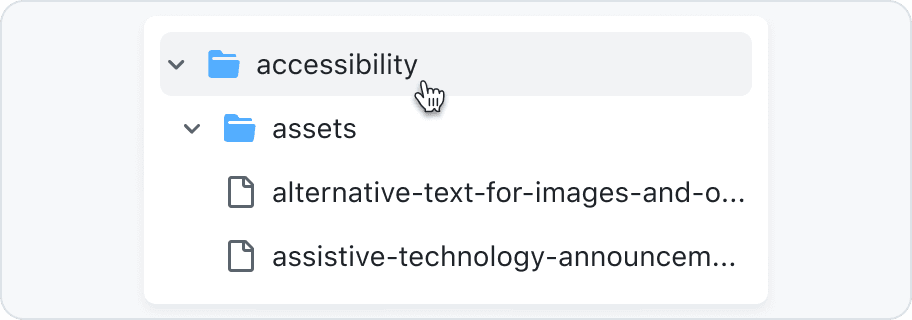

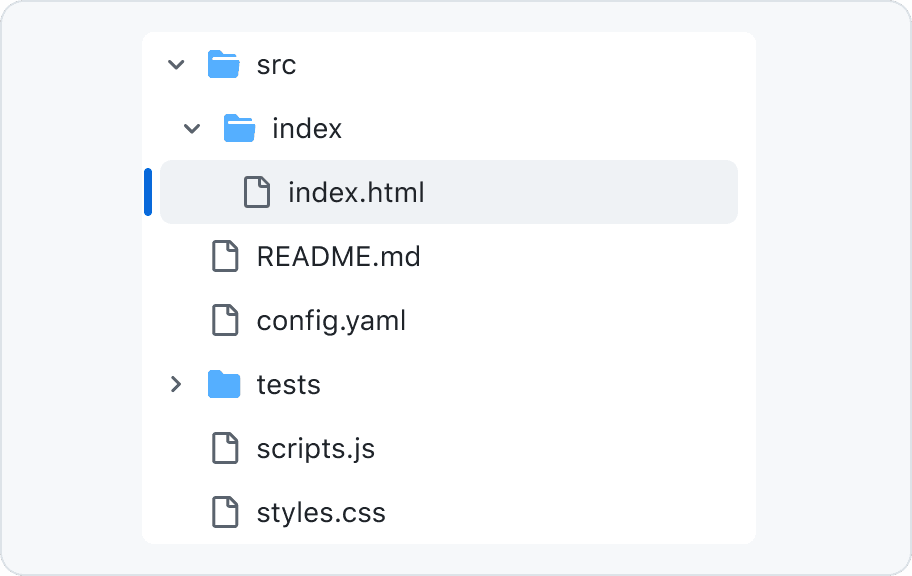

Anatomy

Parent node: Expands/collapses to show/hide child nodes.
End node: A node with no children
Chevron: Expands/collapses a parent node and indicates expanded/collapsed state.
Nesting level indicator lines: Each line represents a level of nesting depth
Leading action (optional): An IconButton to allow interaction with the node besides activating or expanding.
Leading visual (optional): A visual cue for additional context
Node label: The text label for the node
Trailing visual (optional): Same as a leading visual, but at the end

Content

Node label

Node labels should be a succinct title for whatever entity the node represents. For example, a file name.

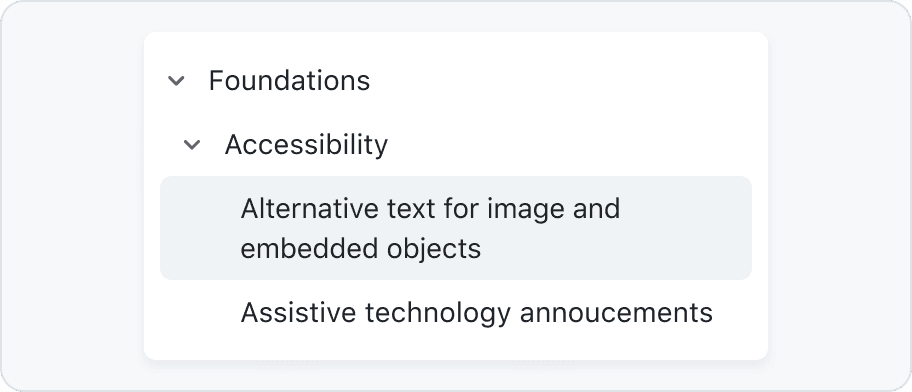

By default, labels are truncated to a single line. However, node labels may be wrapped to multiple lines in cases where the entire label must always be visible.

When a node's text is truncated, it should still be accessible to users in some fashion. Truncation is only accessibly acceptable if there is some way for users - including those navigating with a keyboard - to see the non-truncated text.

Leading and trailing visuals

Leading and trailing visuals may be used as visual cues that communicate more information about a node.

If the leading or trailing visual contains useful information, make sure it has a screen-reader accessible text label. Note that the file and folder icons are not considered useful information, as the TreeView's underlying markup will communicate their presence.

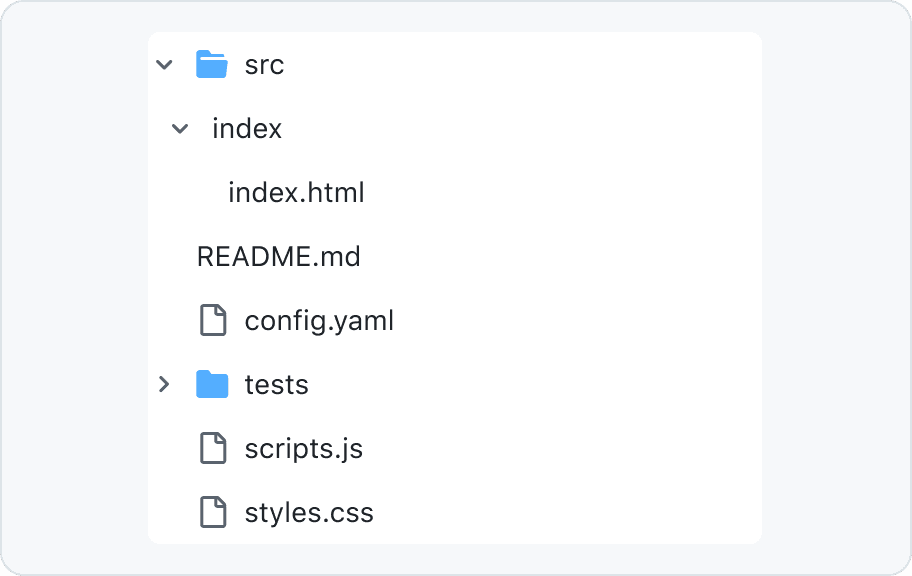

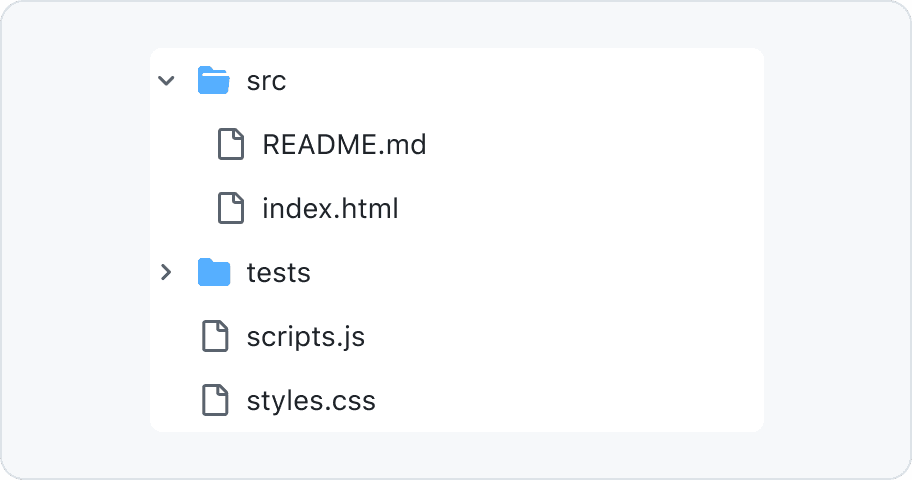

Either all nodes have leading visuals, or no nodes have leading visuals. Leading visuals must be accompanied by a text label.

Render all nodes with leading visuals and text labels or just with text labels

Don’t

Interaction

Keyboard users can expand or collapse nodes without activating them by using the left and right arrow keys.

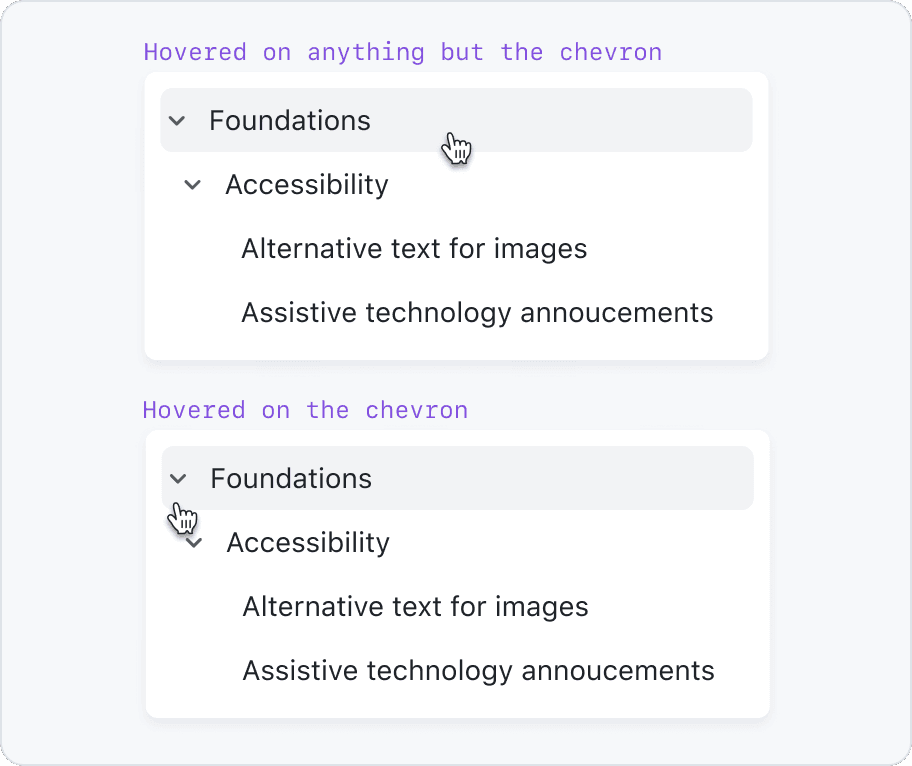

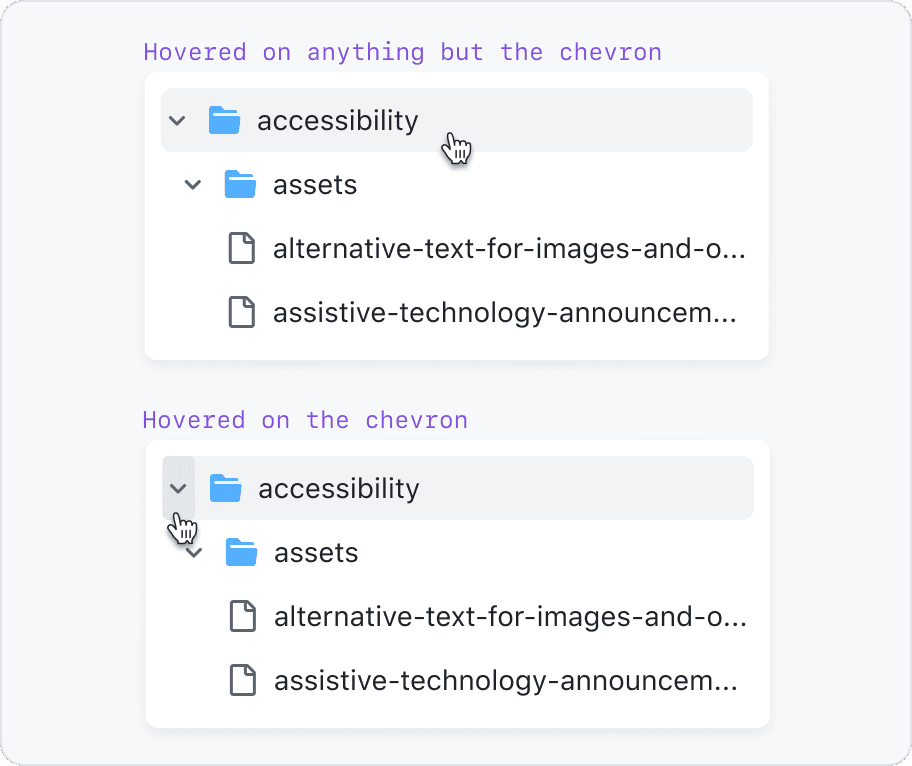

To give cursor users an equivalent experience, there are two click areas:

clicking the chevron only expands or collapses the node
clicking anywhere else will activate the node

If the node cannot be activated, clicking anywhere on the node will expand it.

Two click areas - toggle expanded or activate link

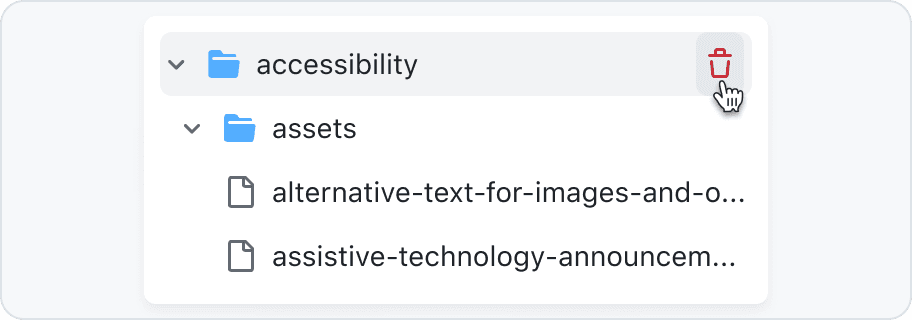

Nodes may not contain any other interactive elements besides the chevron. Activating a node can only perform one action. For example, following a link.

Don’t

We have investigated the feasibility of supporting a context menu for each node, and that could be something we support in the future if we find we need it.

Usage

TreeViews are only for hierarchical lists

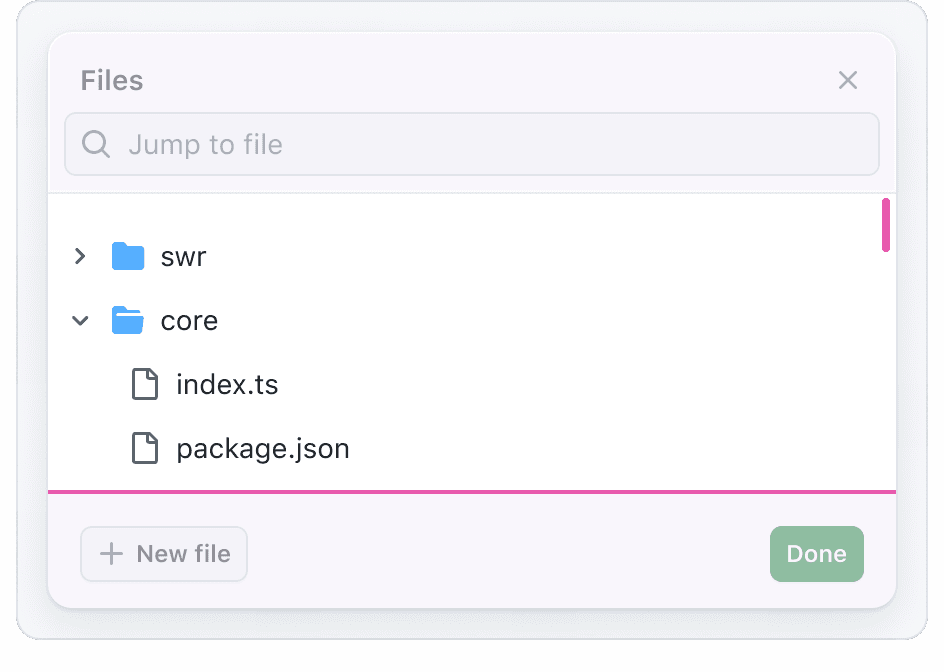

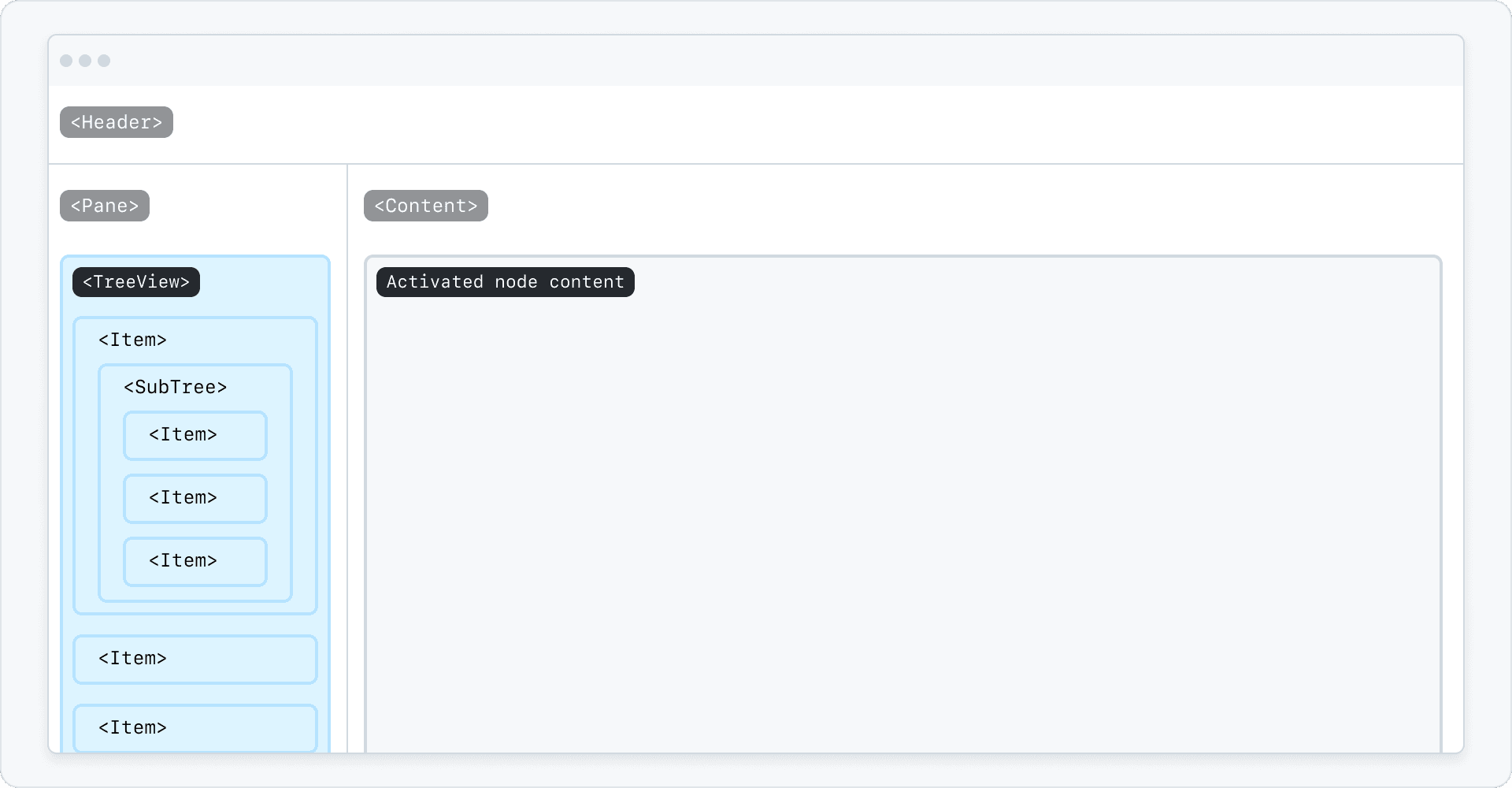

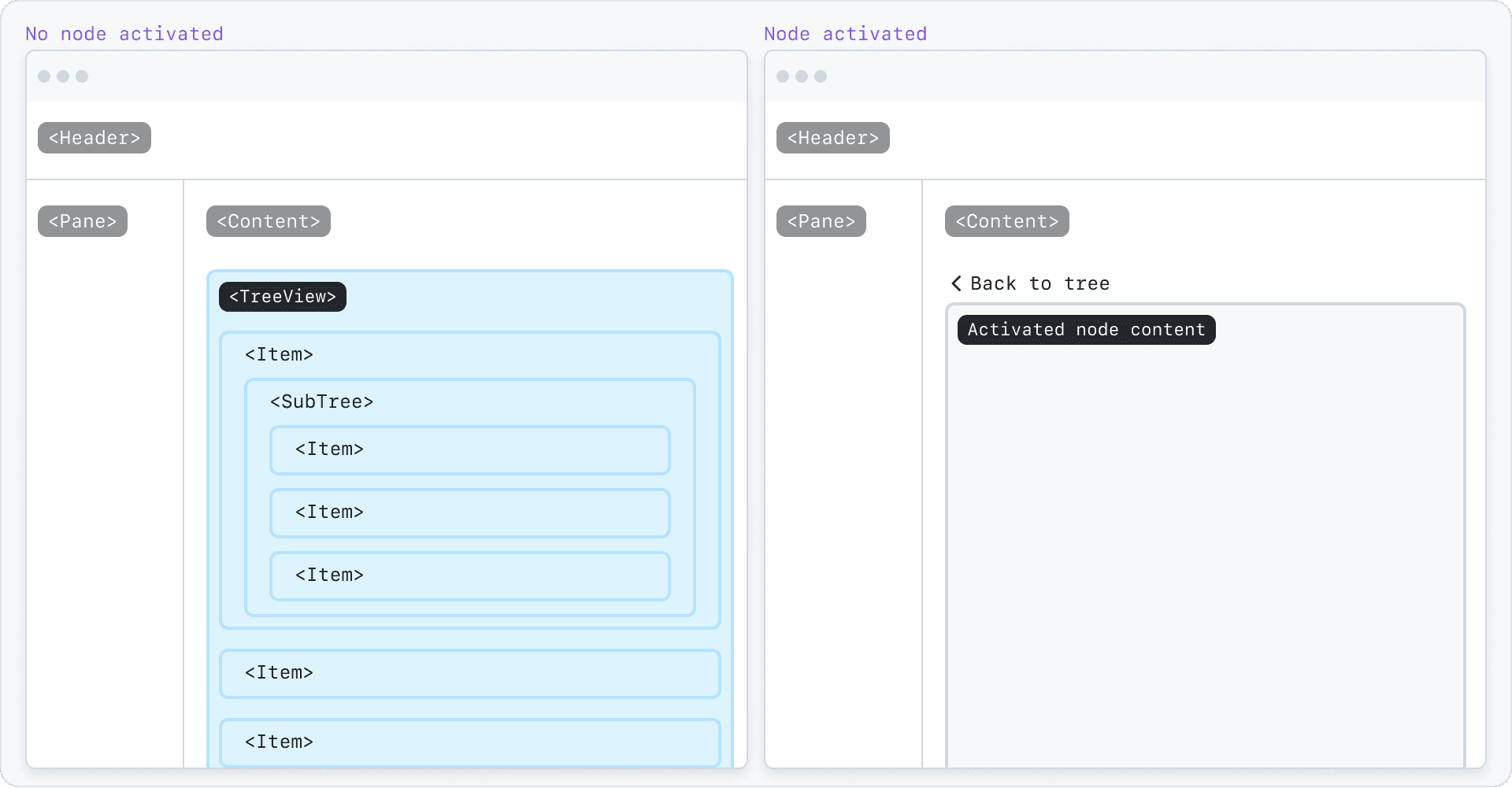

A TreeView solves a very specific problem. It's not a multi-purpose tool like an ActionList or meant for site navigation like a NavList.

Tree views are used to communicate a hierarchical list of items, and allow a user to navigate through, select, and take action on one or more items. A comparable experience would be a list of files in a code editor, or an operating system file explorer. While they may visually look like navigation, tree views have specific interaction modes and expectations for assistive technology that differs from other patterns. Trying to use a tree view for something that looks visually appropriate, but is not functionally inline with its intended use case may cause confusion or an unusable experience, especially if the user cannot see the screen.

Before reaching for a TreeView, first make sure that:

the items in the TreeView represent a list
the list items are likely to have a parent-child relationship with more than 1 level of nesting
the expand and collapse behavior aids in navigation instead of just making it more complex

Some good cases for a TreeView are:

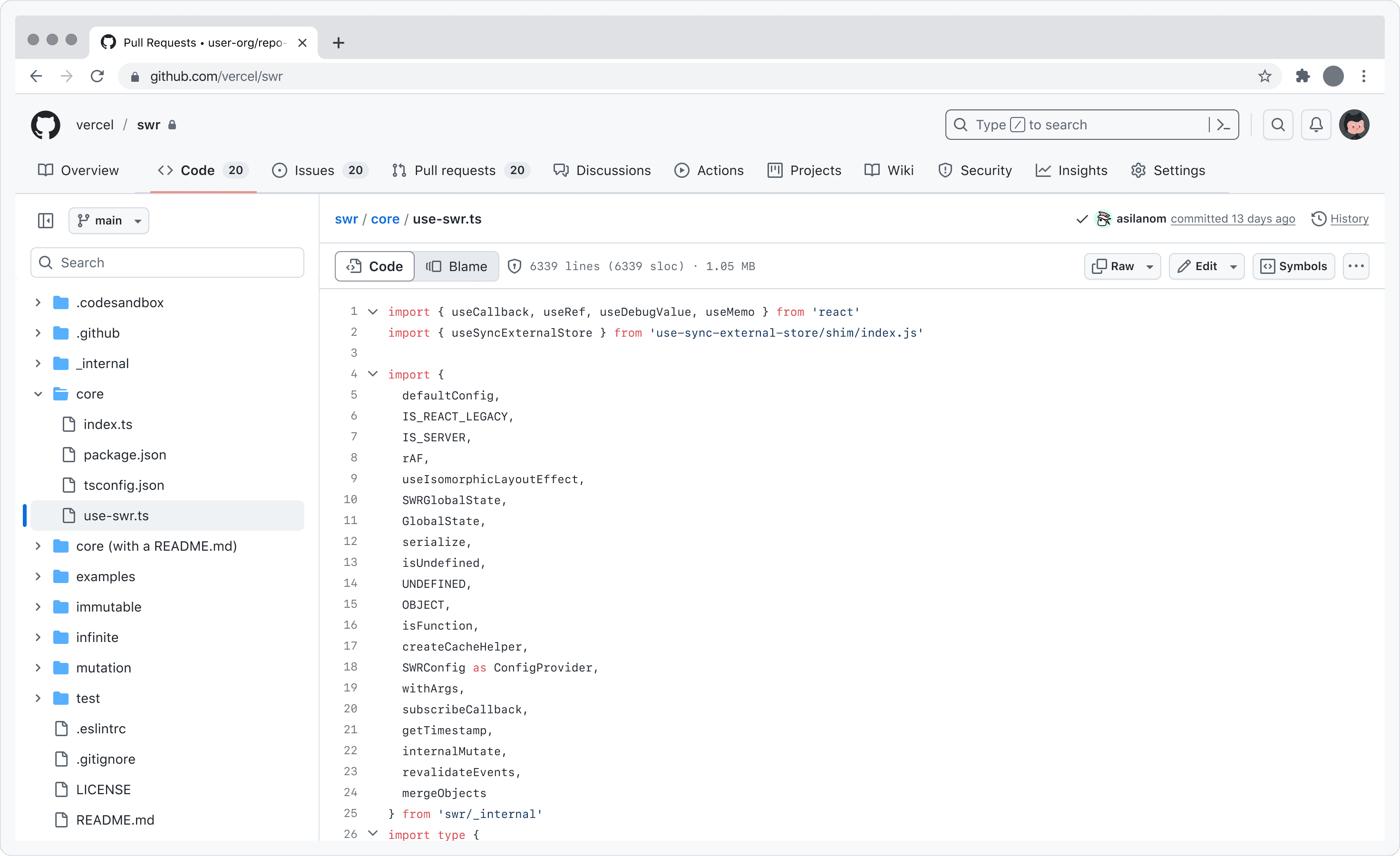

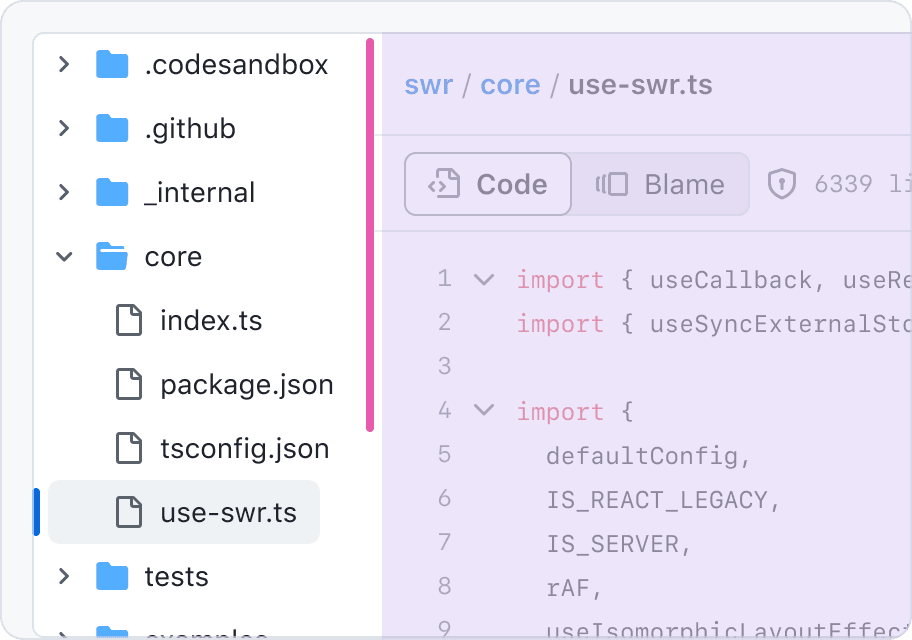

navigating the file structure of a repo

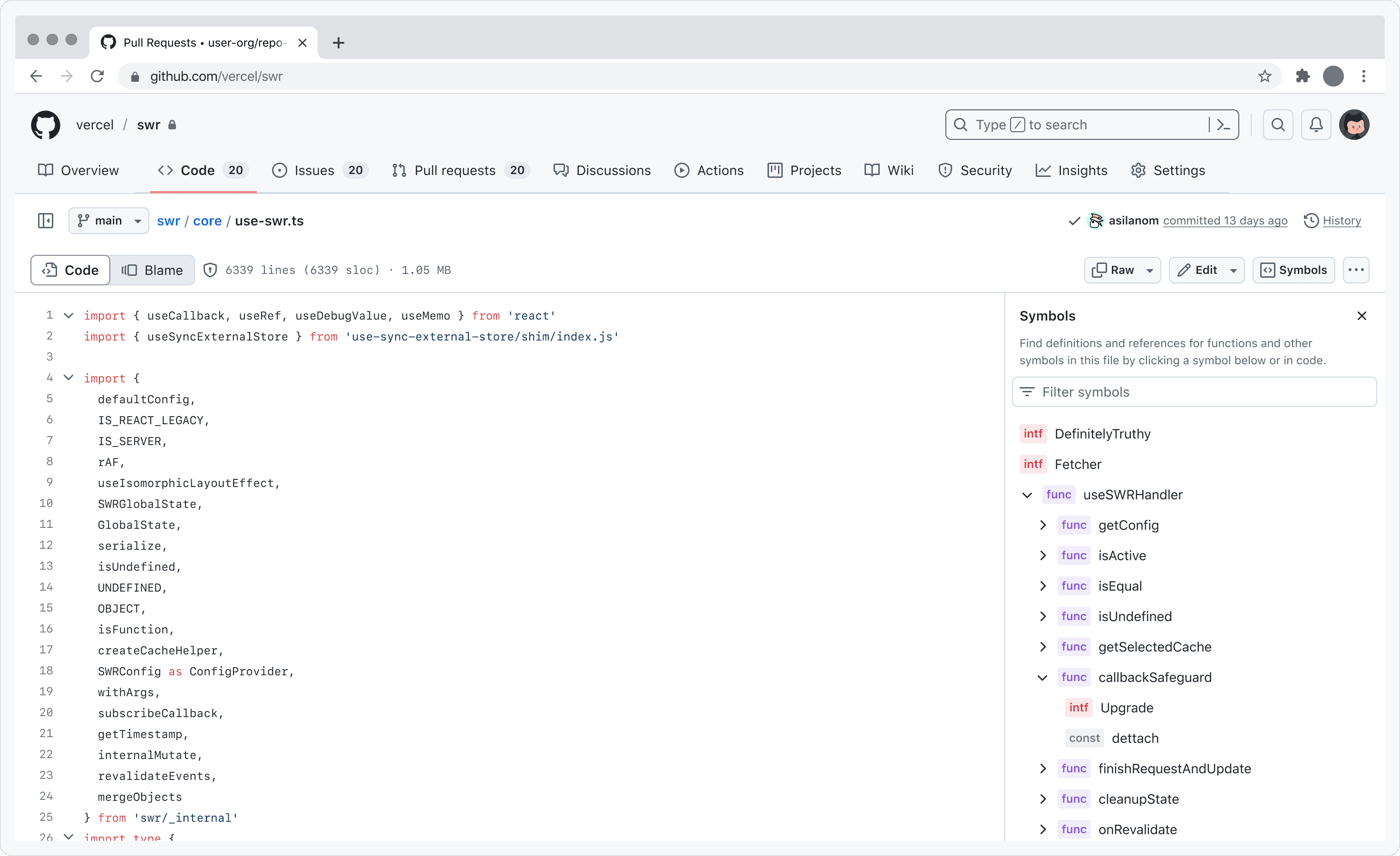

navigating a codebase's symbols (types, constants, functions, etc) organized by their scope hierarchy

A TreeView would not be appropriate for:

global sidebar navigation

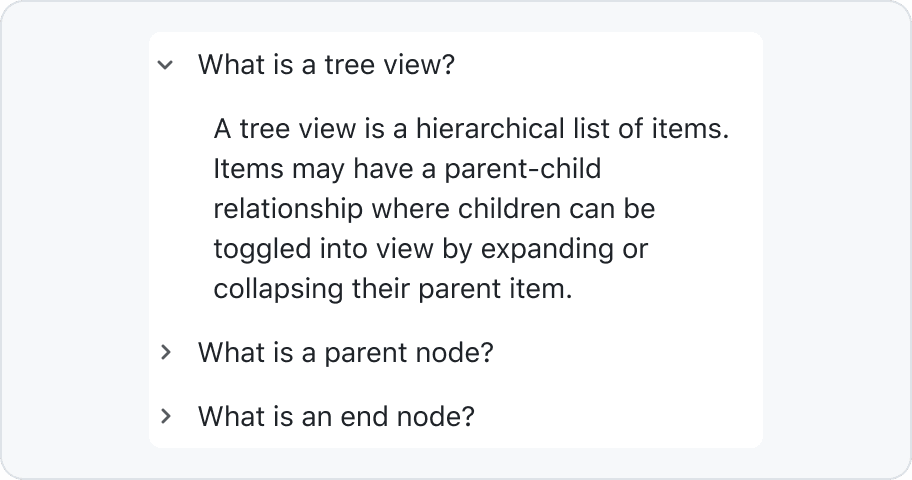

an FAQ that collapses answers under question headings

Don’t

Expanding and collapsing nodes

A TreeView can be a frustrating pattern if it forces users to spend a lot of time expanding and collapsing nodes to find what they're looking for.

Expanded by default

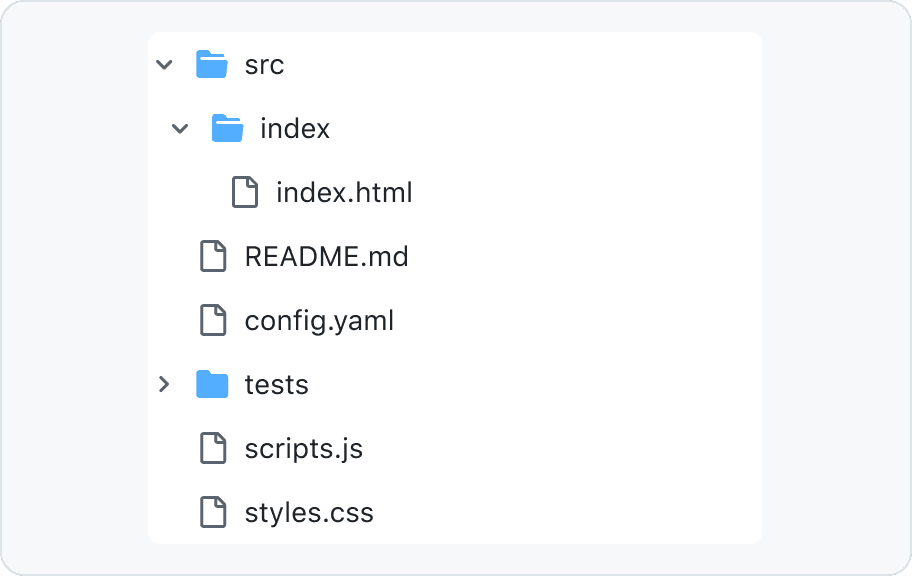

When a child node is active, all of it's parent nodes should be expanded.

If it's likely that a user will want to interact with all or most of the nodes in the tree, render the tree with all parent nodes expanded to start. For example: when reviewing a pull request, all of the changed files are shown to make it easy for reviewers to scan and navigate the changed files.

Preserve expanded state when parent node is collapsed

If a user expands nested parent nodes and then collapses a parent node higher in the hierarchy, persist the expanded parent nodes lower in the hierarchy. It could be frustrating to have to re-expand the nodes that were already opened.

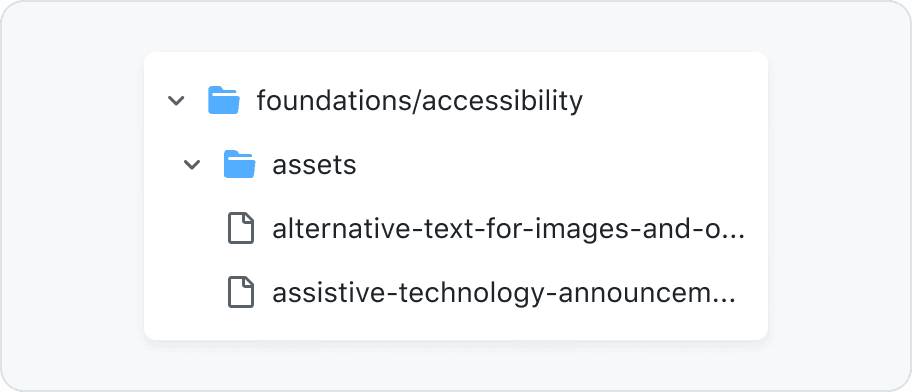

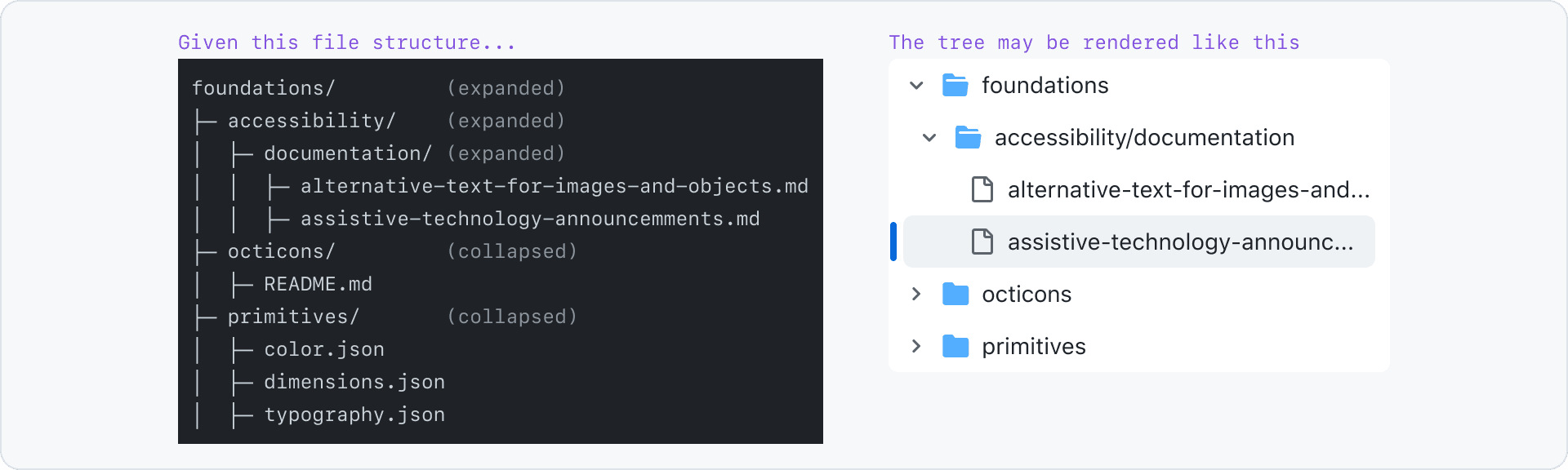

Optionally combine parent nodes

If no end nodes are in the ancestry and the parent nodes cannot be activated, you may combine parent nodes into a single parent node to reduce the levels of nesting. Less levels of nesting make for a more compact tree and less nodes for the user to expand to get to child nodes.

Handling deeply nested nodes

Navigating through deeply nested nodes can be cumbersome and visually clunky. If accessing nodes deeper than 10 levels deep is a common interaction for your use-case, reconsider whether a TreeView is the best pattern.

TreeViews are designed to be horizontally compact in order to support many levels of nesting and long node labels. This makes content truncation and horizontal overflow less likely to occur for deeply nested nodes, but infinite nesting makes those cases impossible to prevent entirely.

There are some strategies to avoid a TreeView that horizontally overflows it's container:

Allow the TreeView's container to be manually resized
Once a certain depth is reached, start the TreeView from a deeper parent node and provide a way to navigate back up the tree
Remove leading and trailing visuals

If a TreeView is truly the best pattern for your use-case and none of the suggested strategies prevent horizontal overflow, opt for horizontal scrolling as a last resort instead of hiding overflowing content.

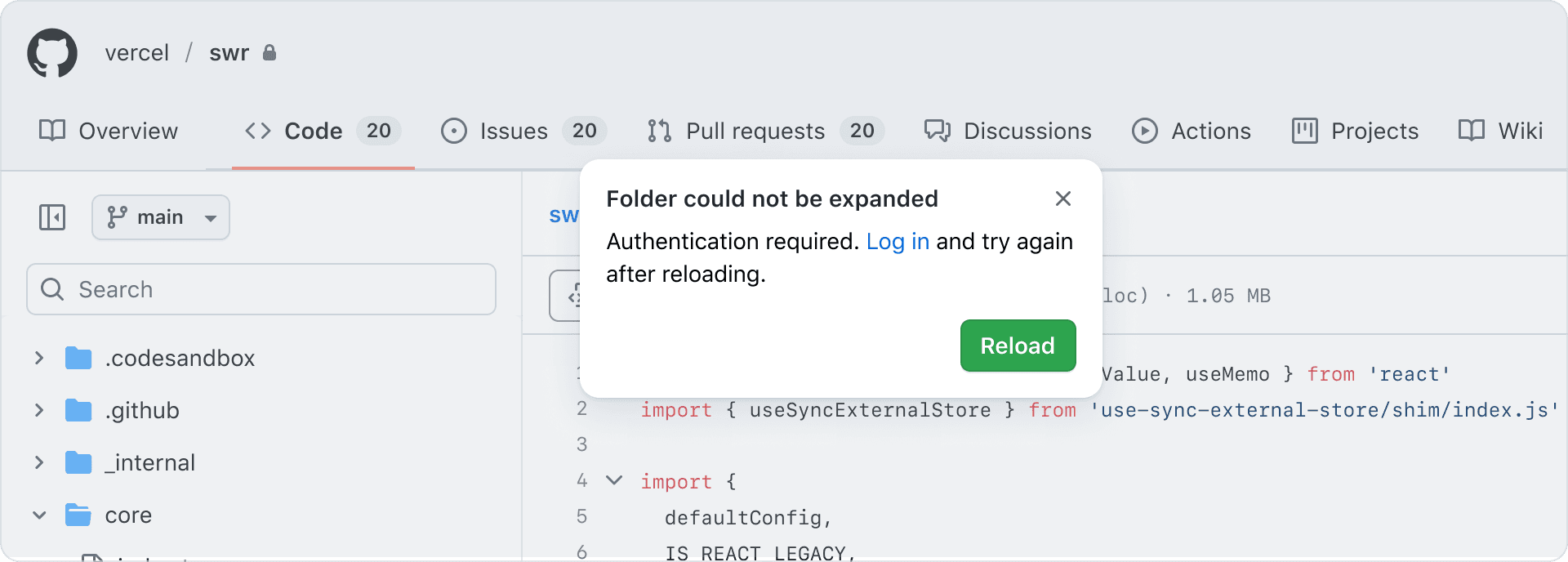

Handling errors loading child nodes

Inform users why the data cannot be retrieved and give them a path to resolve it. The error message cannot appear in the TreeView because it is not semantically a node in the tree. Instead, the error message should appear in a Dialog with an optional call-to-action that can resolve the error.

If the user dismisses the Dialog, focus should be moved back to the collapsed parent node. If the user clicks a call-to-action that attempts to load the child nodes again, focus should be moved to the node in the tree that communicates the child nodes are loading.

If we don't have enough information to write a useful error message, it's ok to write something generic like "Couldn't load".
